100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fit Models: 1954-1956 Ford Passenger Cars V8 Sunliner, Skyliner, Customline, Crestline, Mainline, Victoria, Crown Victoria
Note: This radiator fits Y block engine but there is not enough room to install both the fan and shroud. All others style work great!

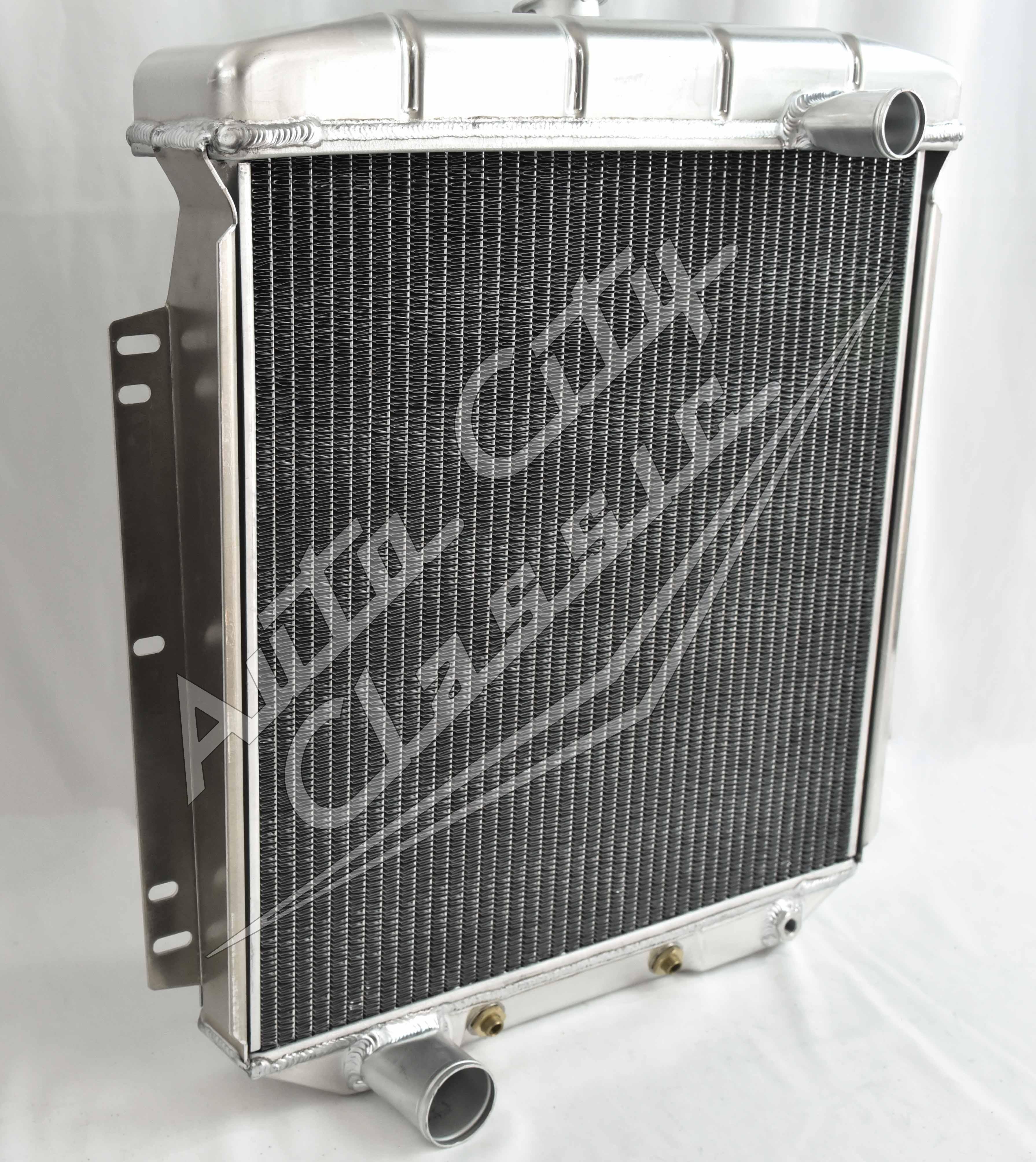

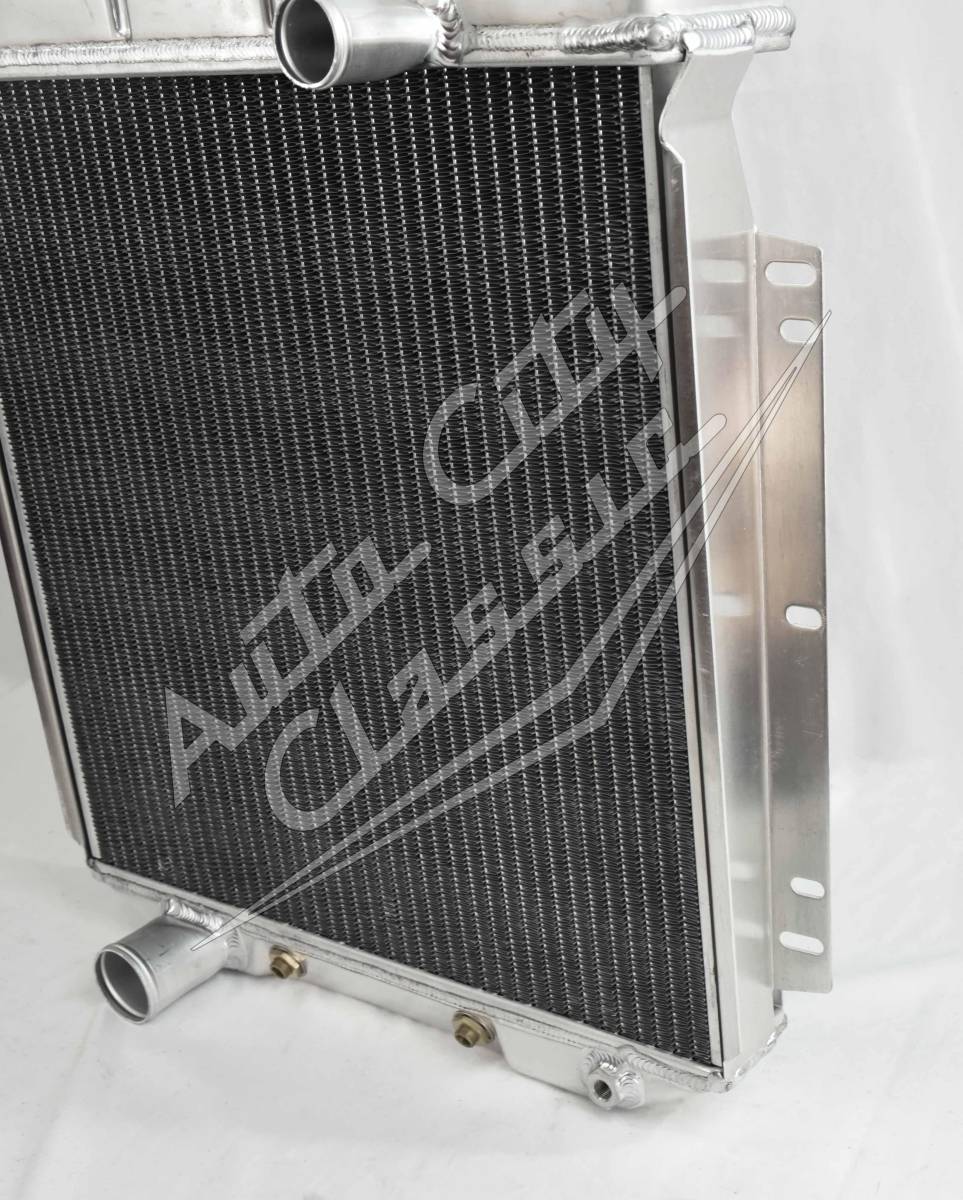

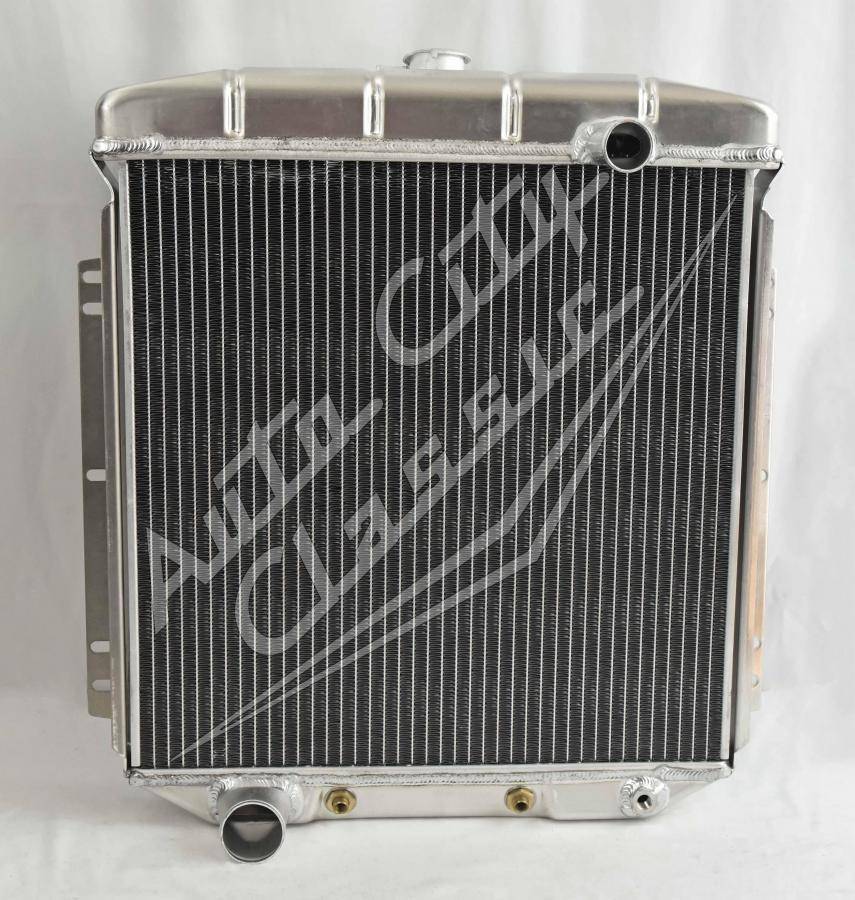

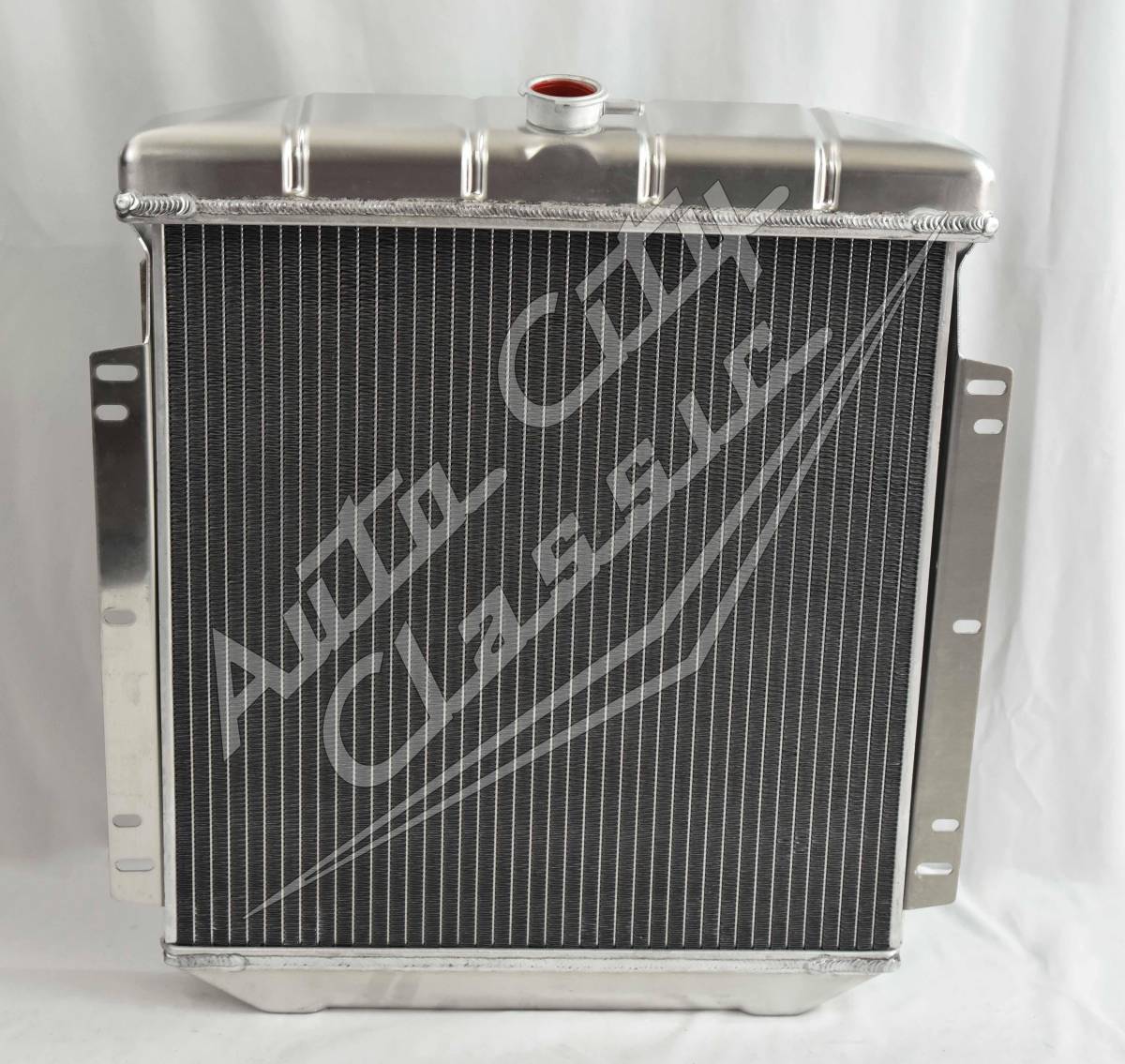

Direct bolt-in replacement aluminum radiator with original style stamped tank. Built in transmission cooler with dual 1 1/8" high flow tubes for maximum cooling.

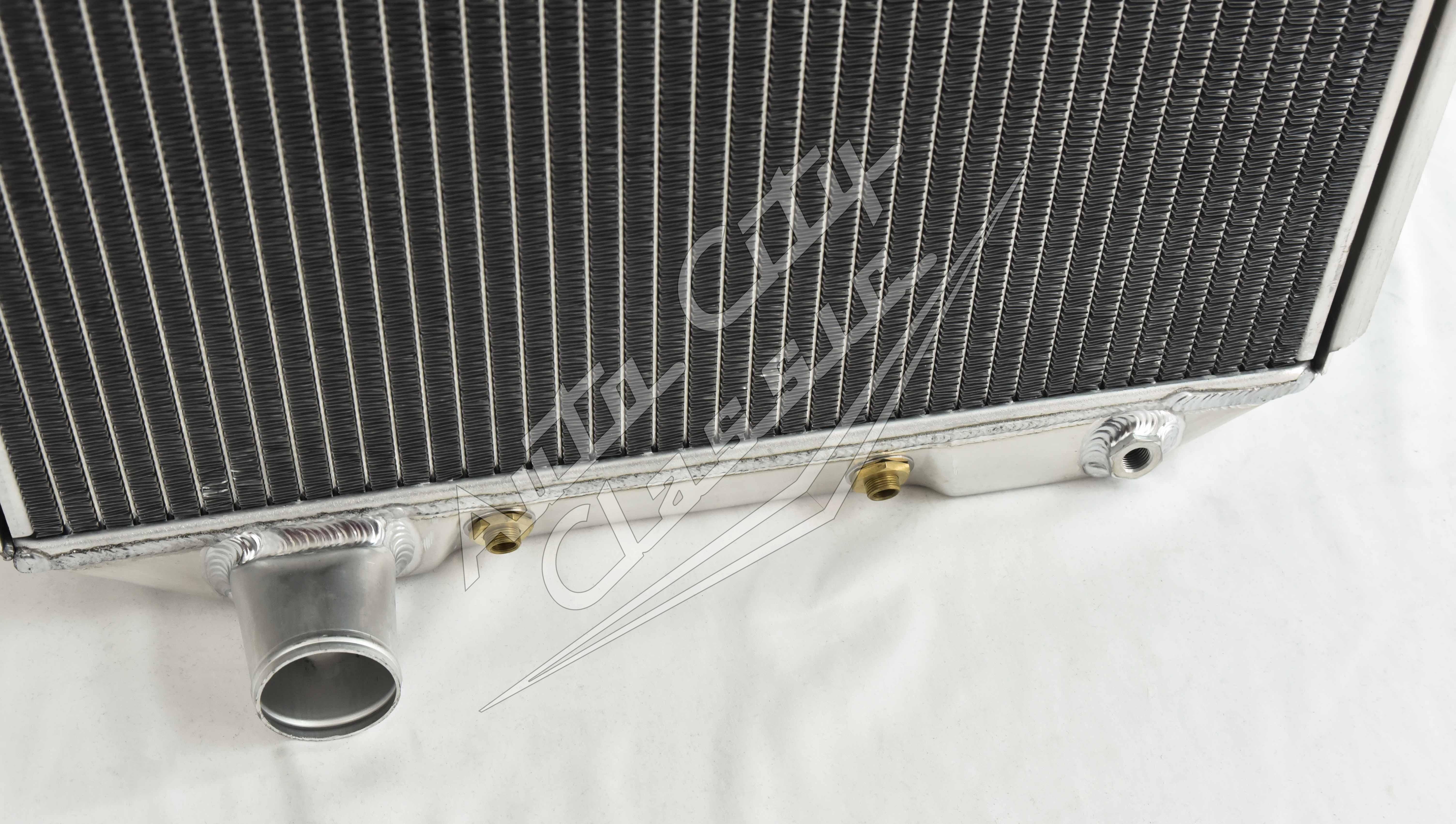

1 1/2" Upper Right Inlet, 2" Lower Left Outlet
Transmission fitting size 1/8-27 NPT

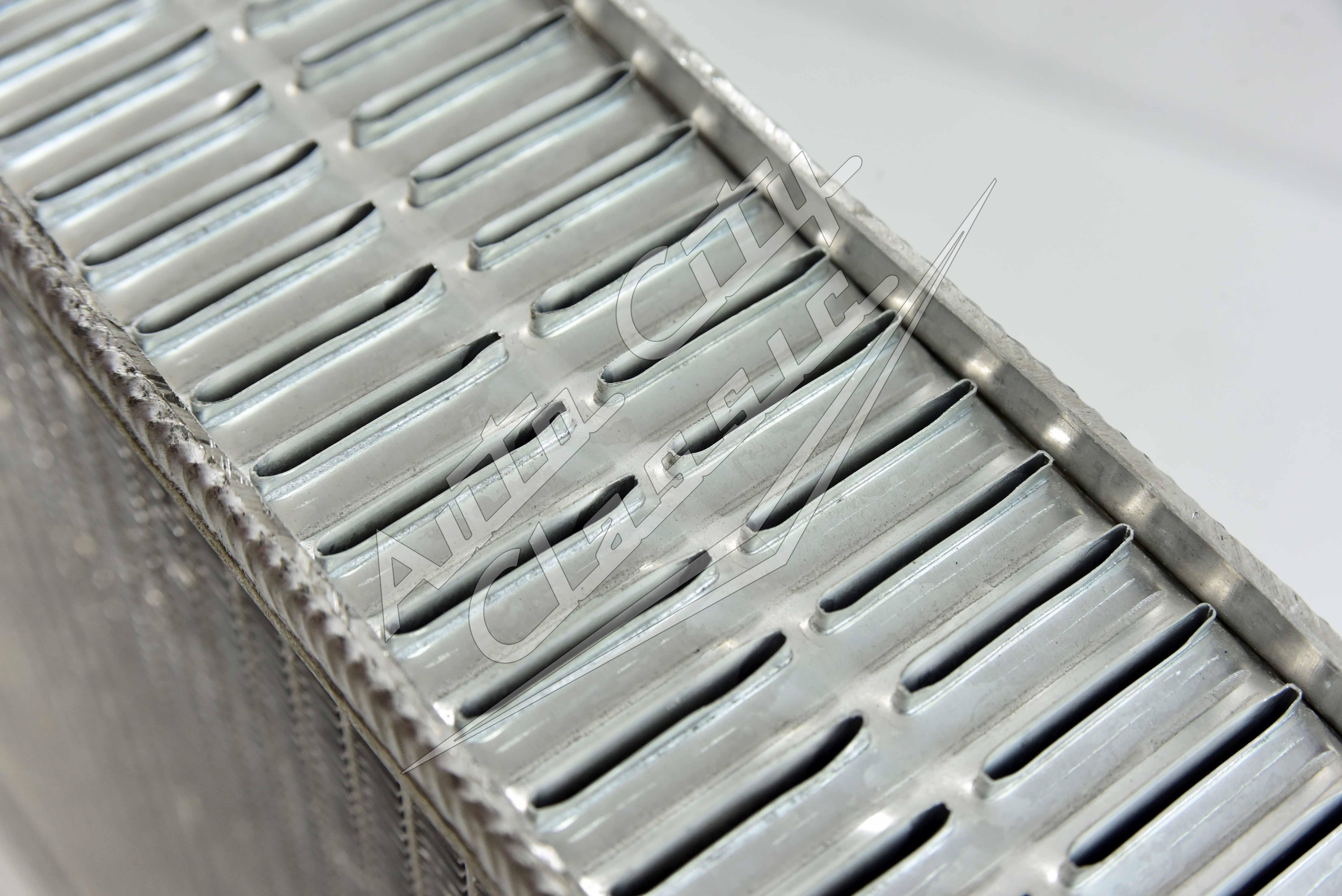

Core size: 19 1/2" wide, 19 3/4" tall, 2 1/2" thick
Overall size (widest point): 23 1/4" wide, 25" tall, 4" thick

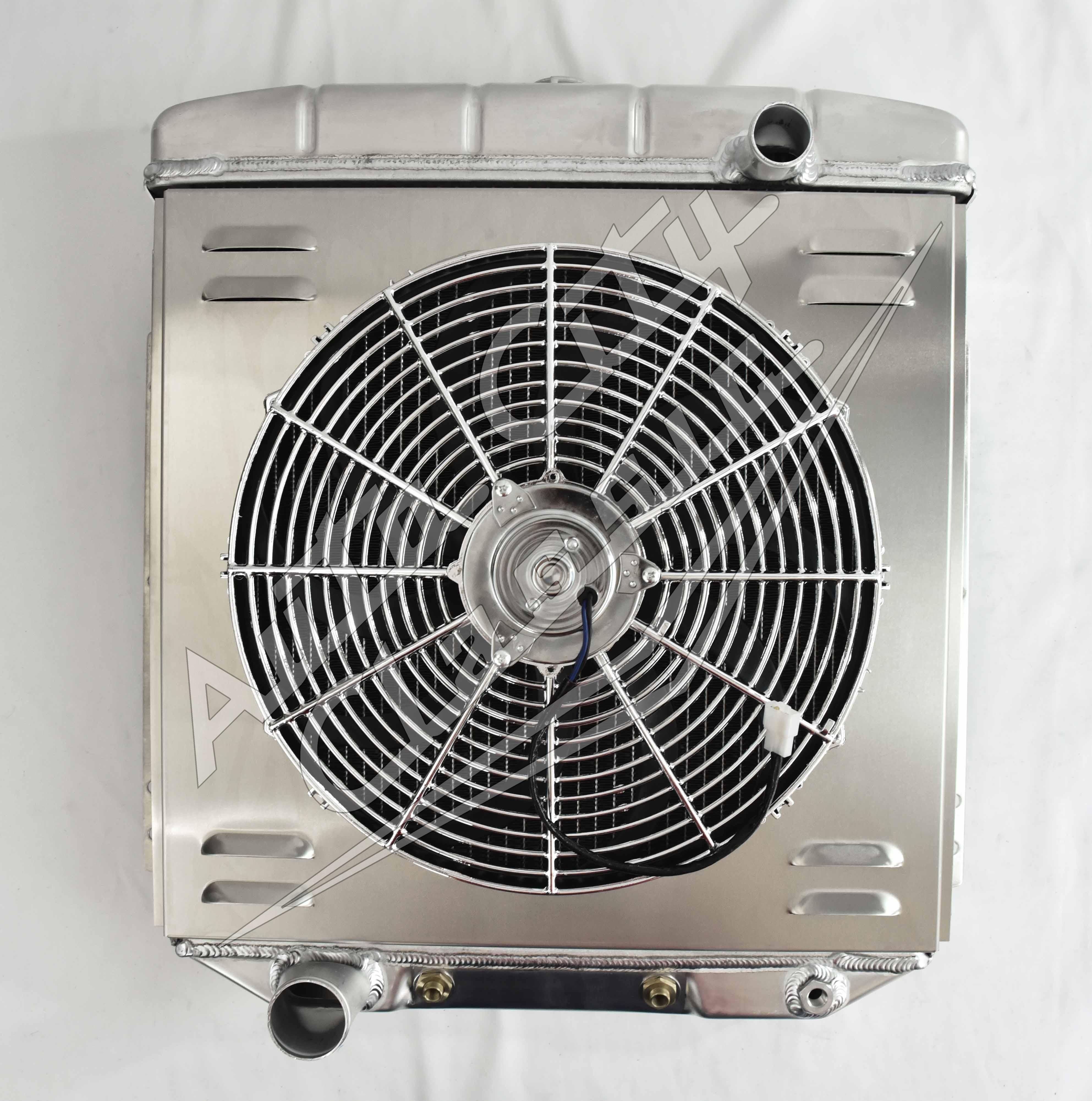

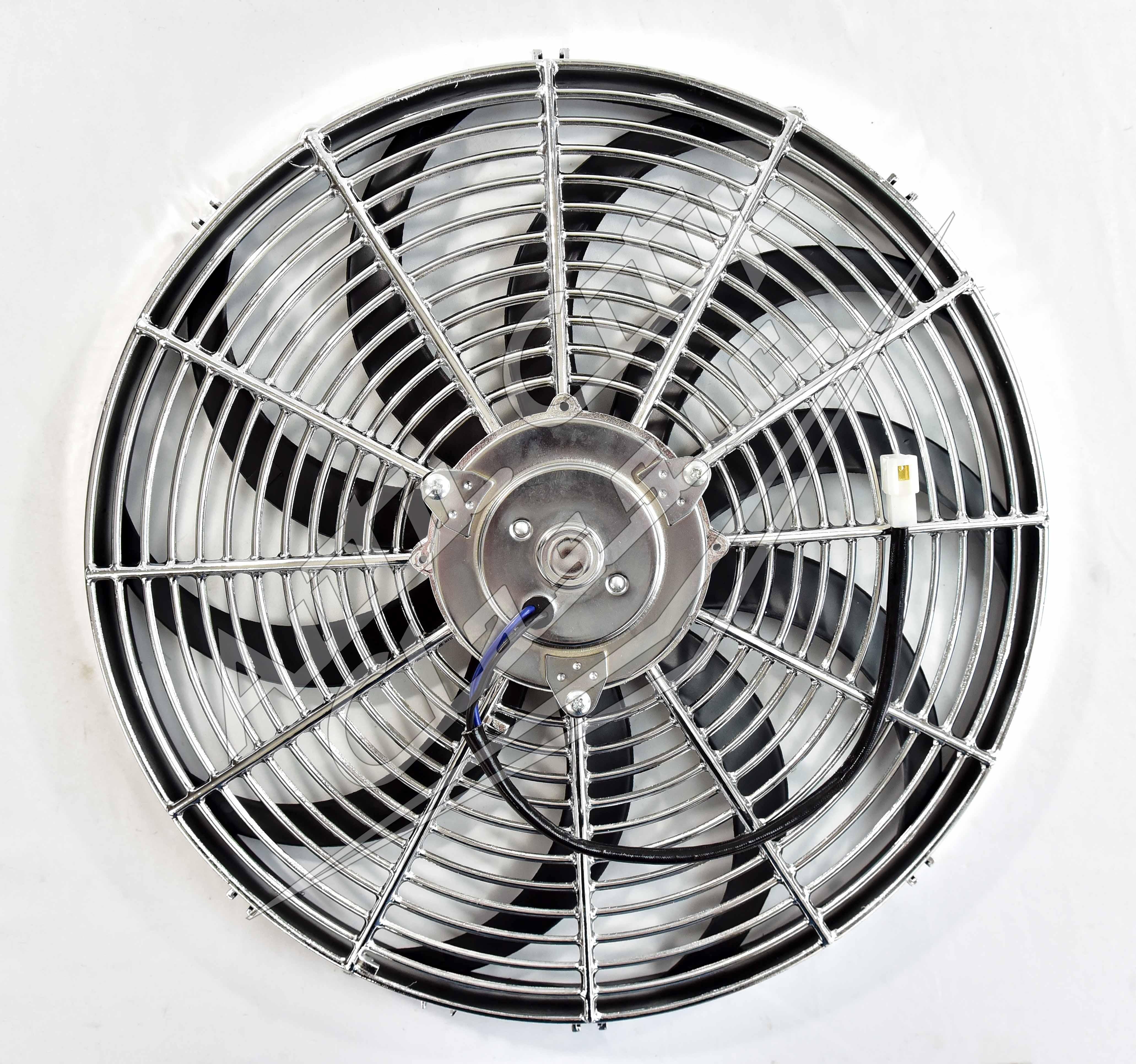

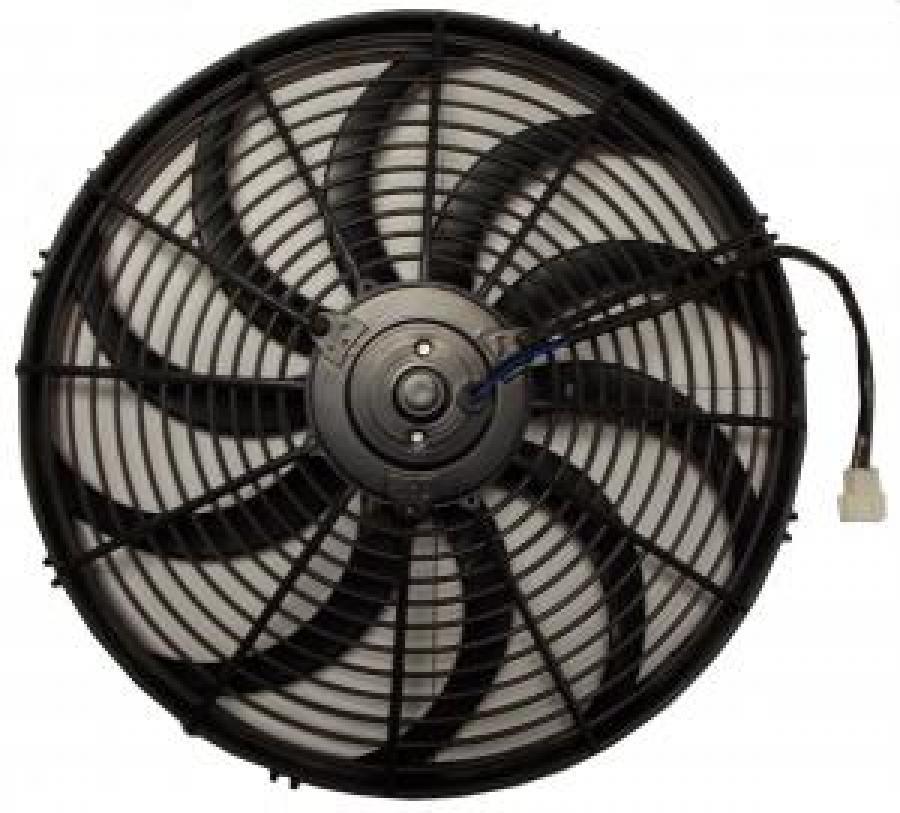

Note: There is an option to add the aluminum shroud and 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime warranty against manufacturer defects.*
Verified Purchase
Had to modify.
Reviewed by Hdrollo on 01/01/2021
Not a direct bolt in For 55 mercury. Had to cut and grind the radiator support to fit. Had to redrill lower mounting holes and notch for battery tray on radiator. Fits now. Also seams light duty only time will tell if it holds up.
