100% Aluminum, 100% Welded Radiator- Lifetime Warranty
Fits Models: 1970-1981 Pontiac Firebird and Trans Am with V8

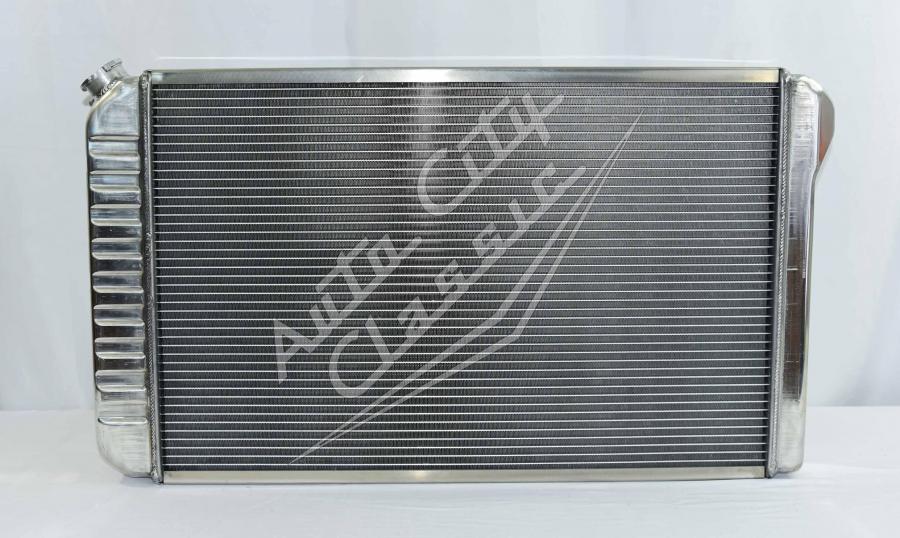

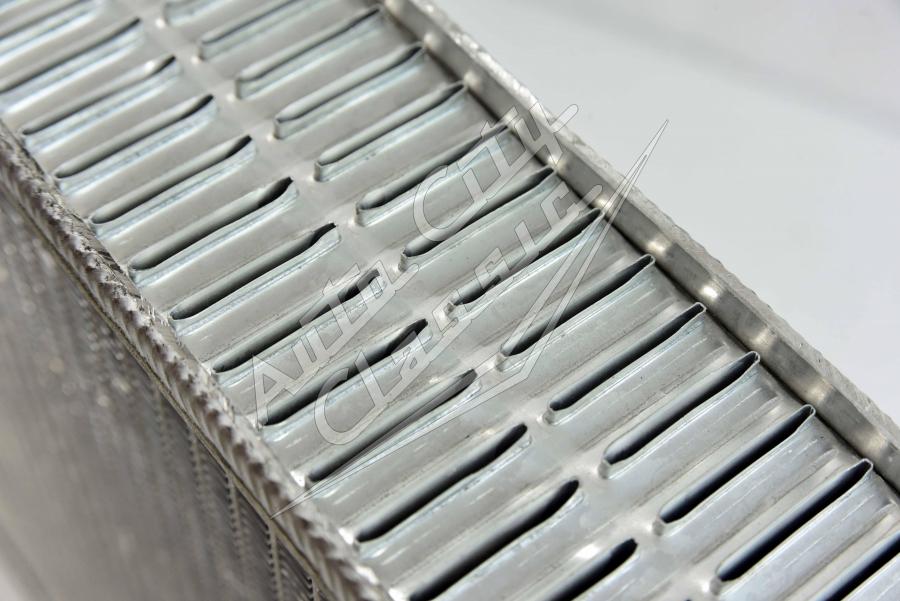

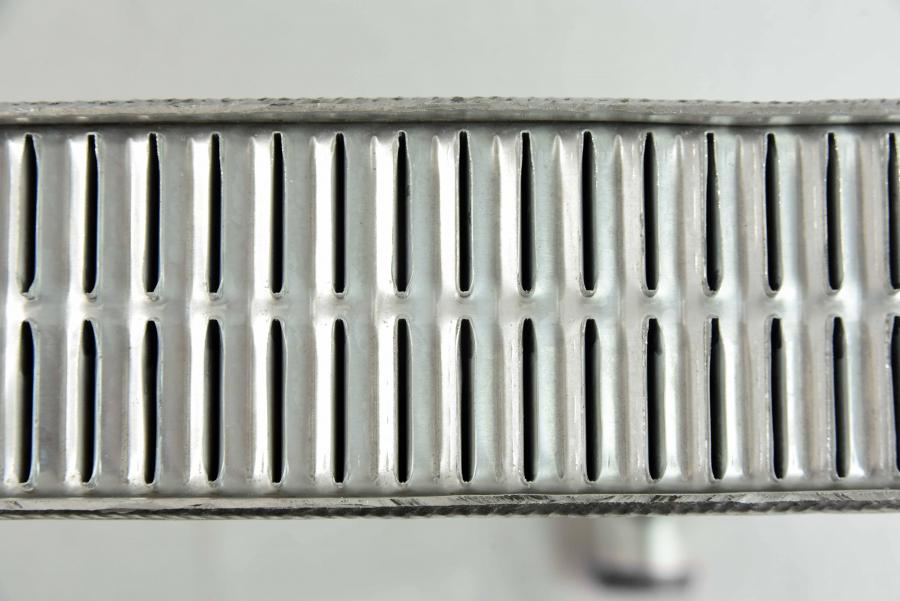

Direct replacement aluminum radiator for 70-81 Firebird and Trans Am. Radiator is stamped and ribbed for original look. Has built in transmission cooler with dual 1 1/8" high flow tubes for maximum cooling.

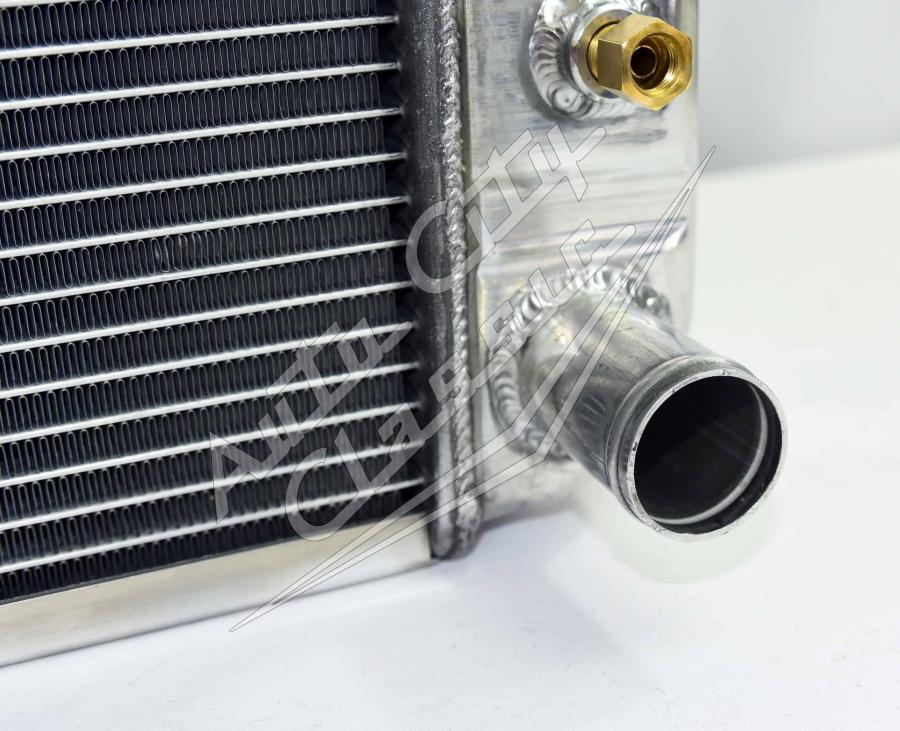

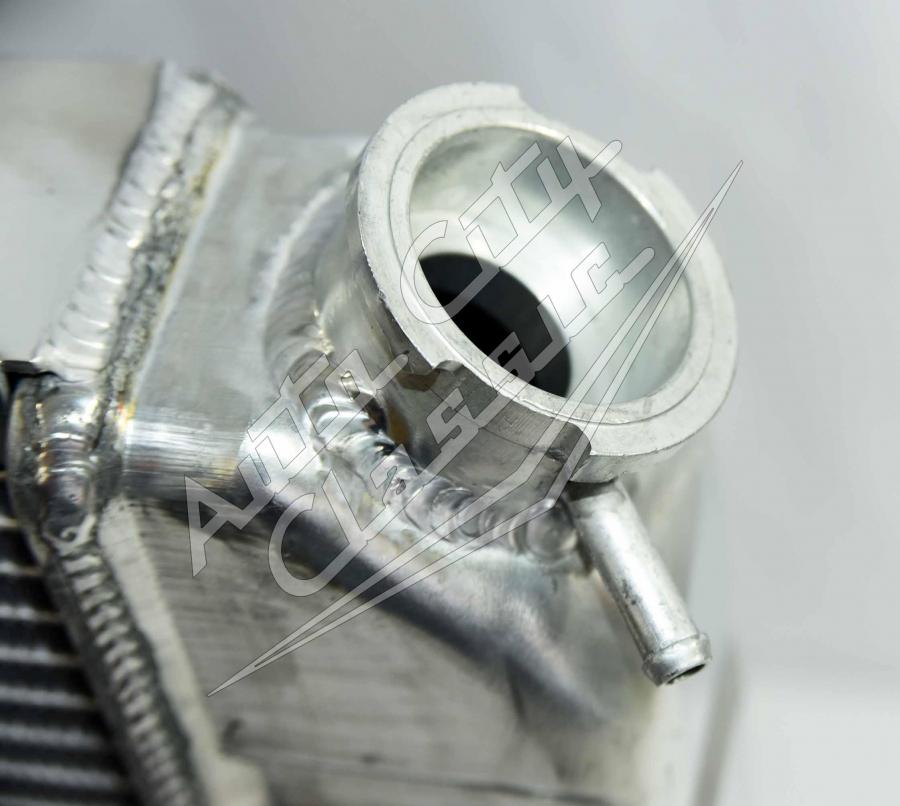

1 1/2" Upper Left Inlet, 1 3/4" Lower Right Outlet

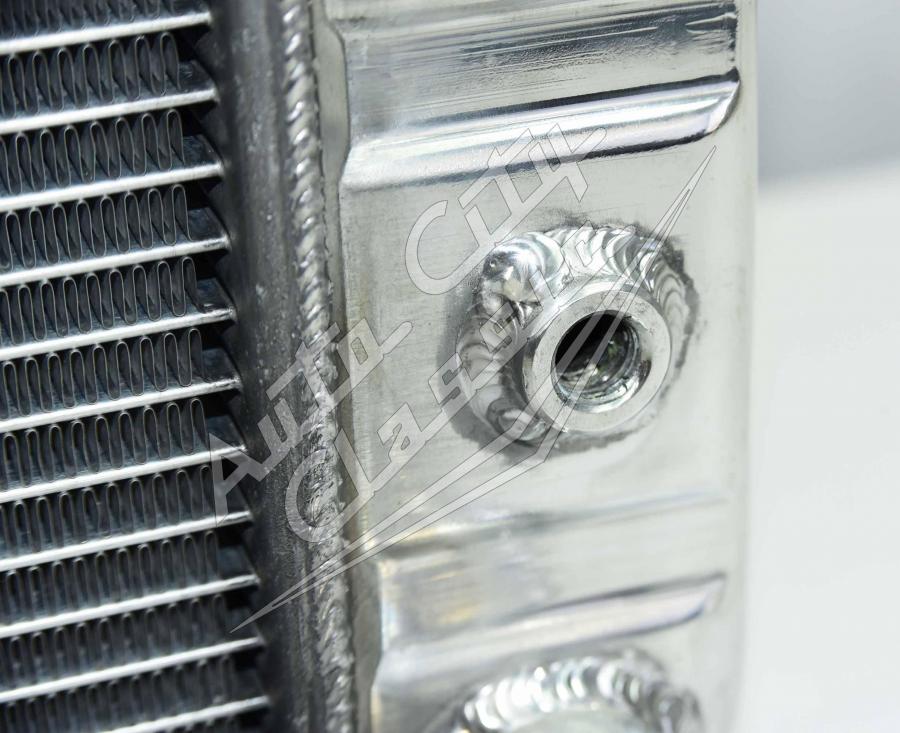

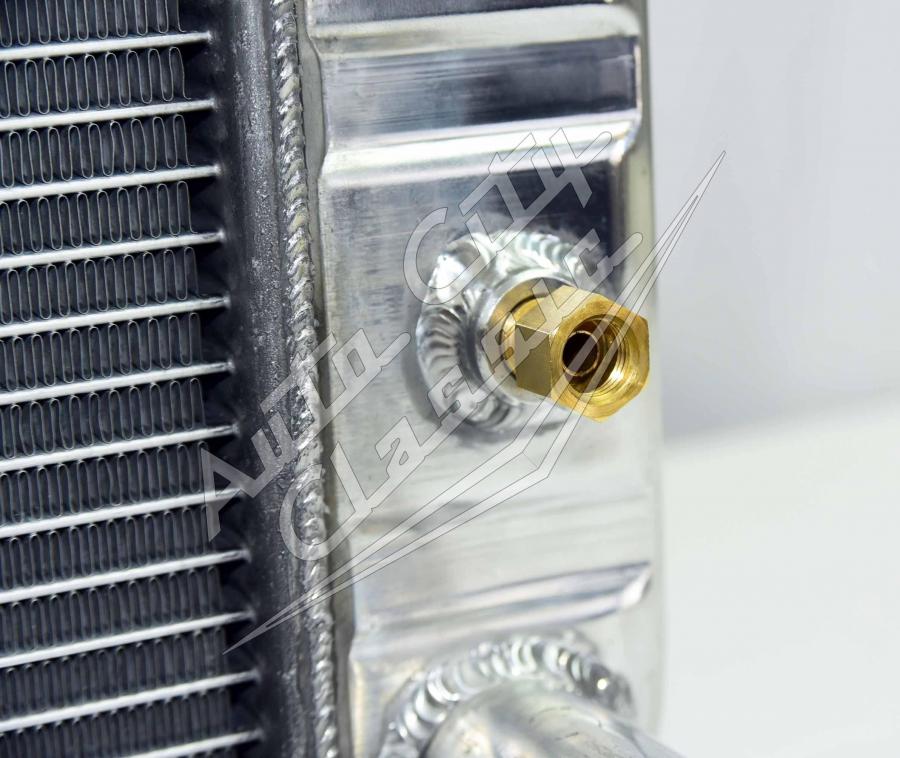

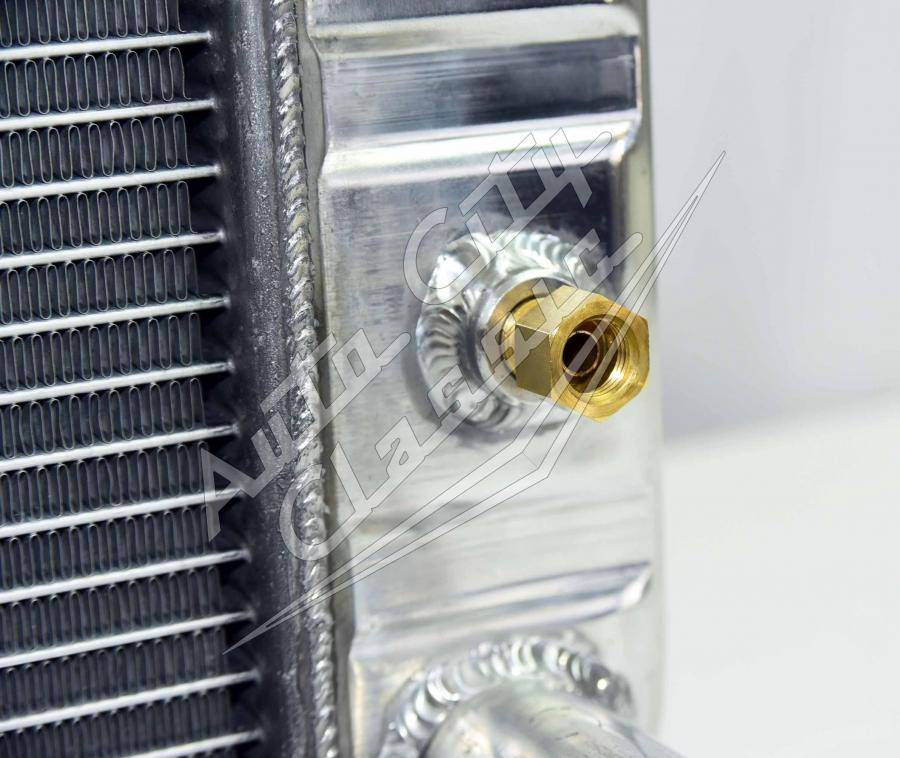

Transmission fitting size 1/2-20
Core size: 27 3/8" wide, 17 1/2" tall, 2 1/2" thick
Overall size (widest point): 33 1/2" wide, 19" tall, 3" thick

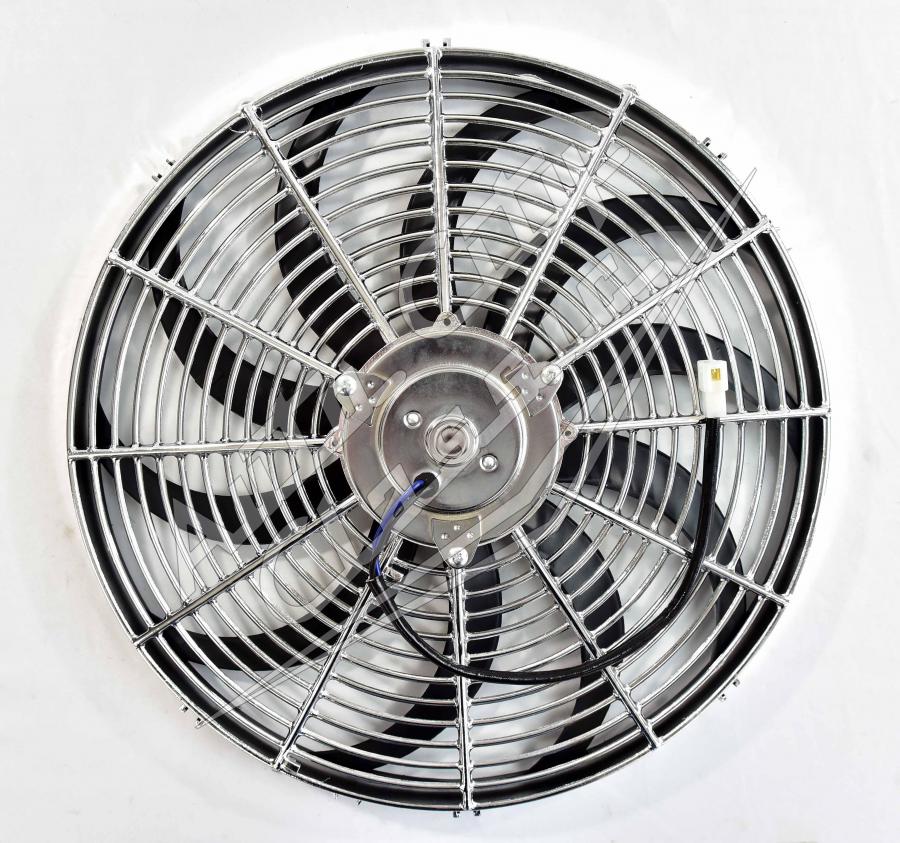

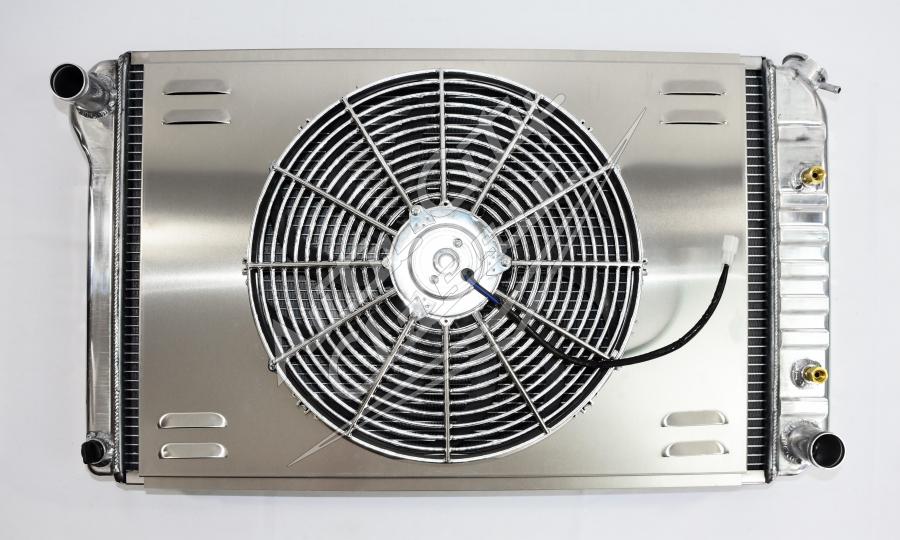

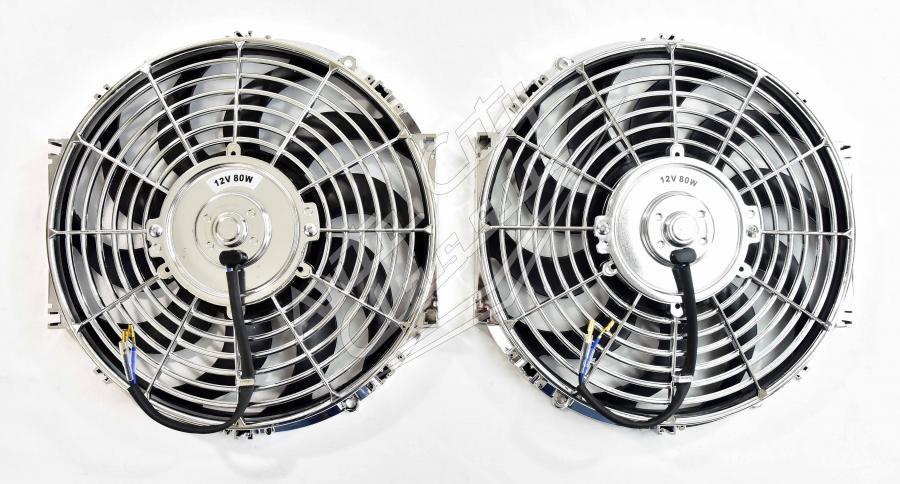

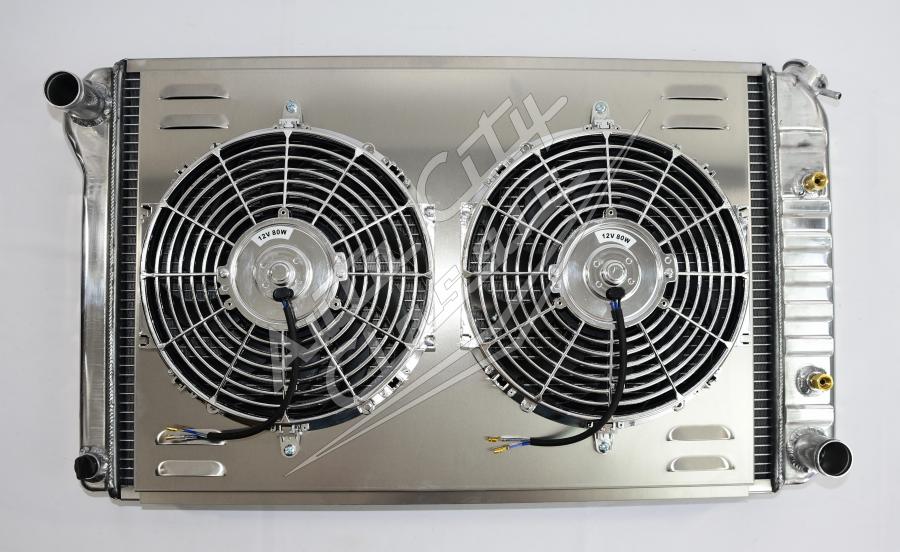

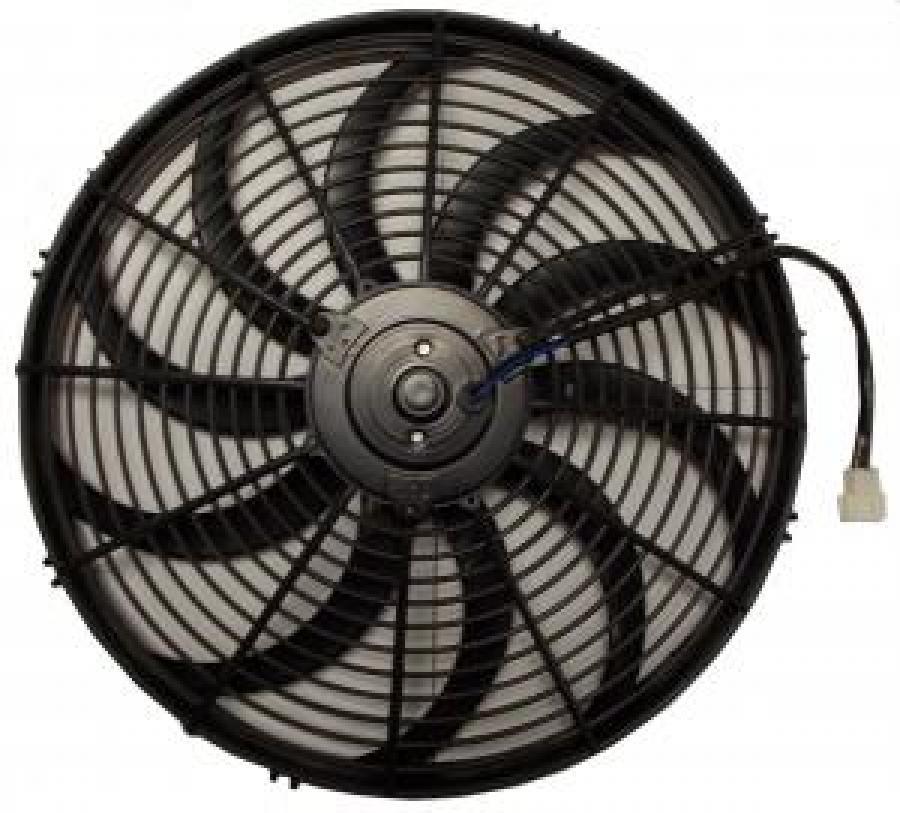

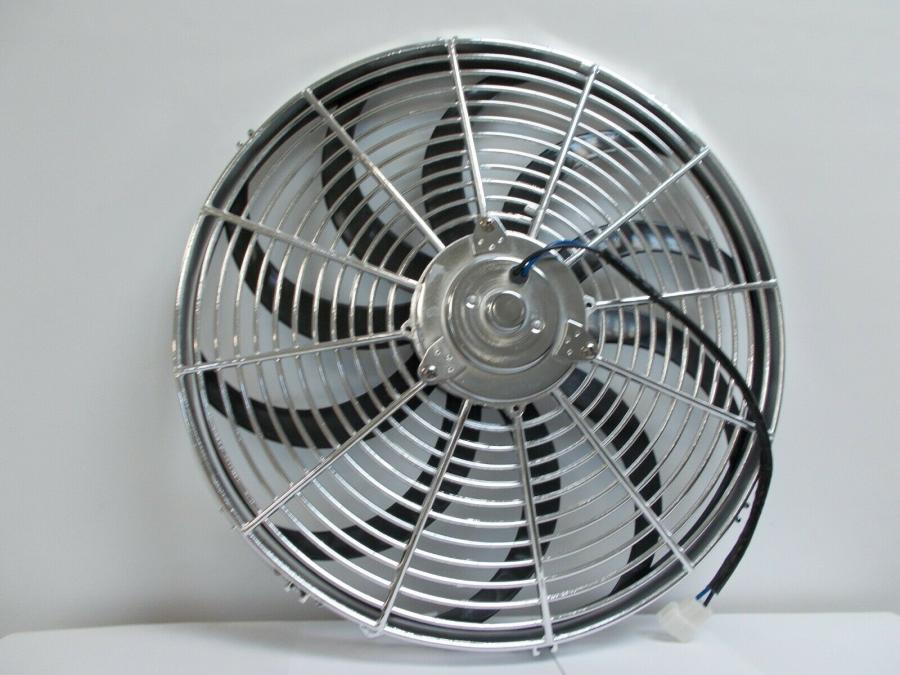

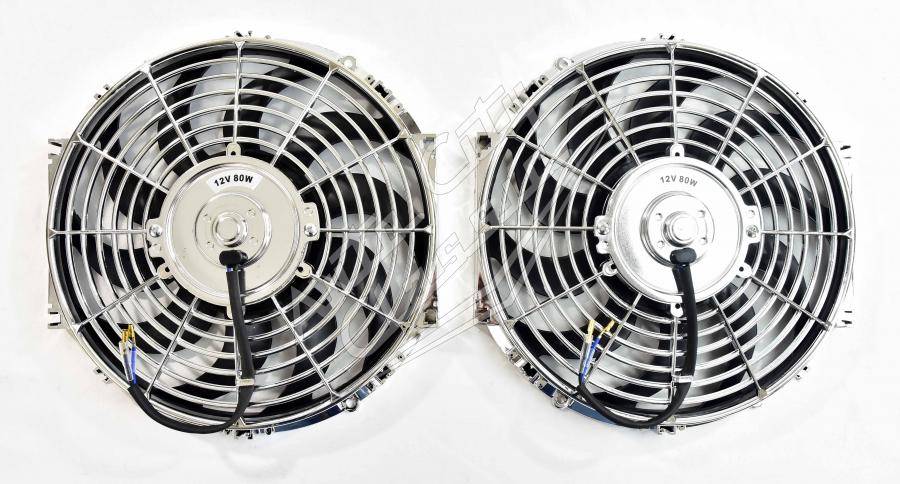

Note: There is an option to add thesingle or dual aluminum shroud and dual 12" or single 16" plastic 2600CFM fan by checking "Yes." in the box labeled Fan and Shroud.
Questions? 1-800-828-2212
*Lifetime Warranty is for manufacturer defects only.*
